Aluminum casting die casting
Die casting is a high-efficiency, precision metal manufacturing process.
It involves forcing molten metal under high pressure into a reusable mold cavity,
known as a die. The metal rapidly cools and solidifies under pressure, resulting in a
net-shaped metal component, known as a casting.
Definition of Casting
Casting is a traditional metal forming process in which molten metal is poured into a mold to achieve the desired shape after cooling and solidification. It is the foundation for modern manufacturing die casting and other advanced methods. Casting die casting techniques are widely applied in industries requiring precision, strength, and cost efficiency.
Die casting types
According to the reusability of the mold, the casting process is mainly divided into two categories: expendable mold casting and permanent mold casting
Expendable Mold Casting
Expendable molds (used once, then discarded) include sand casting and investment casting. Sand casting, the most common, uses sand-based molds for large, low-to-medium-volume parts (e.g., engine blocks). It has low upfront costs but lower precision and slower production.
Sand Casting
Sand casting is a metal casting process that uses a sand mold to form the desired shape of a part. Molten metal is poured into the sand mold cavity, allowed to solidify, and then the mold is broken away to reveal the finished casting.

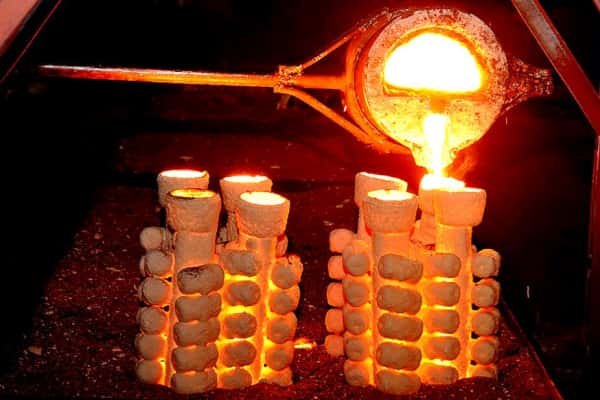

Investment Casting
Investment casting is a precision casting process where a wax pattern is coated with ceramic material to form a mold. Once the ceramic hardens, the wax is melted and drained away, leaving a hollow mold into which molten metal is poured. After cooling, the ceramic shell is broken, revealing a highly accurate casting.
Permanent Mold Casting
Permanent mold casting relies on reusable molds, such as gravity die casting and die casting. Aluminum die casting and zinc die cast processes are common examples. Permanent molds enable better accuracy, improved surface finish, and faster production cycles, making them ideal for high-volume manufacturing.

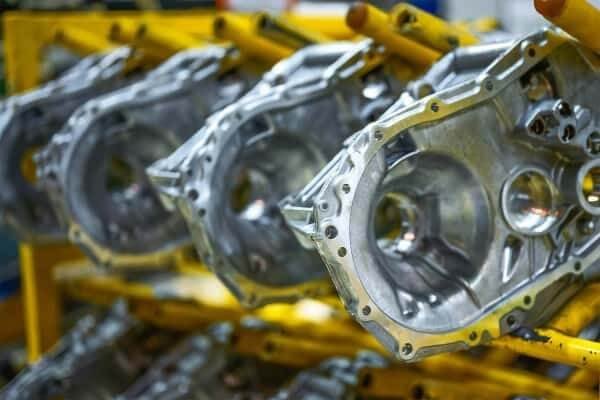

Hot Chamber Die Casting
Definition: The injection mechanism is submerged in molten metal, and the metal is injected directly into the die cavity.
Best For: Low-melting-point alloys such as zinc, magnesium, and some lead-based alloys.
Advantages:
Fast cycle times → high productivity.
Longer die life due to lower melting temperatures.
Efficient for small-to-medium-sized parts.
Limitations: Not suitable for high-melting-point metals (like aluminum or brass).

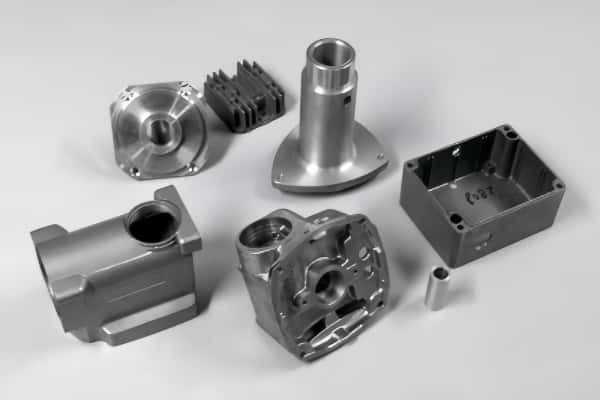

Cold Chamber Die Casting
Definition: Molten metal is ladled into the injection chamber from an external furnace, then injected into the die.
Best For: High-melting-point alloys like aluminum, brass, and copper.
Advantages:
Handles stronger, higher-melting-point metals.
Produces dense and durable castings.
Limitations:
Slower cycle times compared to hot chamber.
Higher wear on dies due to high-temperature alloys.

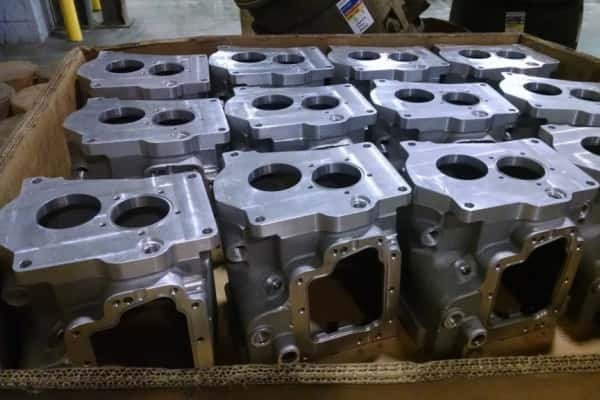

Vacuum Die Casting
Definition: Uses a vacuum pump to remove air and gases from the die cavity before injecting molten metal.
Best For: High-integrity parts where porosity must be minimized (e.g., automotive and aerospace components).
Advantages:
Reduces air entrapment and porosity.
Produces stronger, weldable, and heat-treatable castings.
Limitations: More complex and costly equipment.

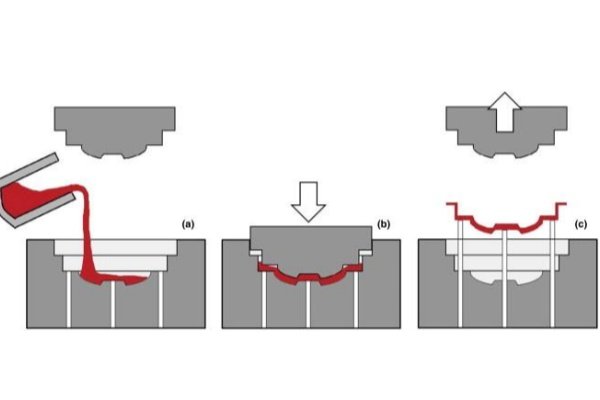

Squeeze Die Casting
Definition: A variation of die casting where molten metal is poured into an open die, and then pressure is applied during solidification.
Best For: Large, thick-section parts (e.g., automotive wheels, chassis components).
Advantages:
Virtually no porosity.
Excellent mechanical properties (close to forged components).
Limitations: Slower process and higher cost than standard die casting.

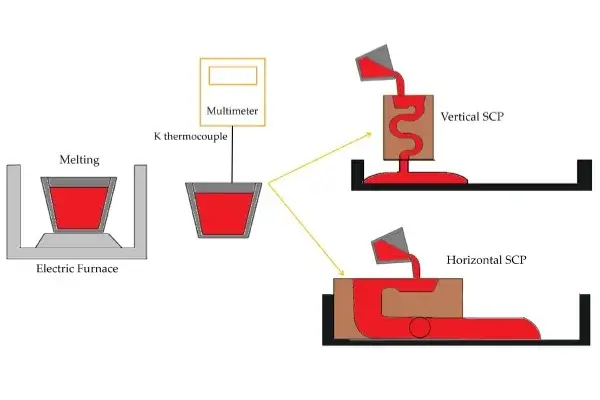

Semi-Solid Die Casting
Definition: Uses partially solid, partially liquid metal (slurry-like state) for injection.
Best For: High-performance aluminum and magnesium parts.
Advantages:
Precise control of flow → less shrinkage and porosity.
Improved mechanical strength.
Limitations: Specialized equipment required → higher cost.

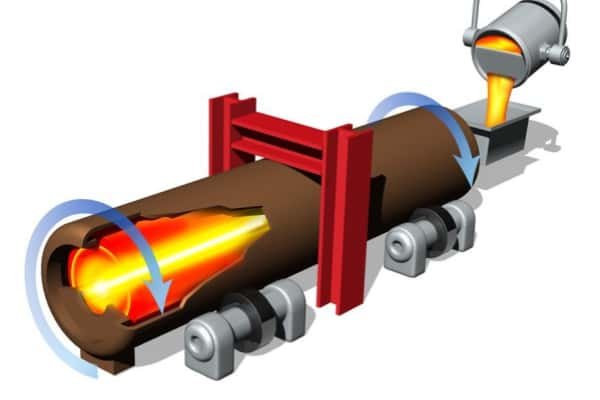

Centrifugal Die Casting
- Definition: In this process, molten metal is poured into a rotating mold. The centrifugal force distributes the metal evenly against the mold walls, where it solidifies.
- Advantages:
Dense structure with high strength.
Can produce hollow parts without gates or risers.
Fewer internal defects in the final product. - Limitations:
Only suitable for symmetrical shapes (such as pipes, bushings, and gear rings).
Requires specialized equipment and high-quality molds.
Die Casting Focus Process
Die casting is a high-pressure process designed for mass-producing complex, precise metal parts. It relies on three core elements: die casting machines, molten metal, and aluminum casting die (or dies for other alloys).
Core Equipment and Workflow
Key Parameters
The Heart of the Process - The Die Casting Die
The die casting die is the backbone of the process—its design and quality directly impact part performance. A aluminum casting die, for example, is engineered to withstand aluminum’s high melting point (~660°C) and repeated pressure cycles.

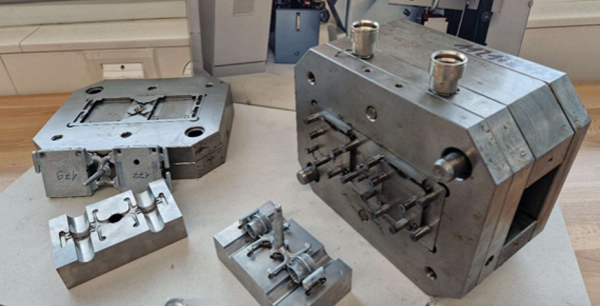

Structure and Materials
Design and Maintenance
Die Casting Alloy Materials: Aluminum vs. Zinc
Alloy choice defines part strength, cost, and use cases. Aluminum and zinc are the most common die casting alloys, each with unique advantages.

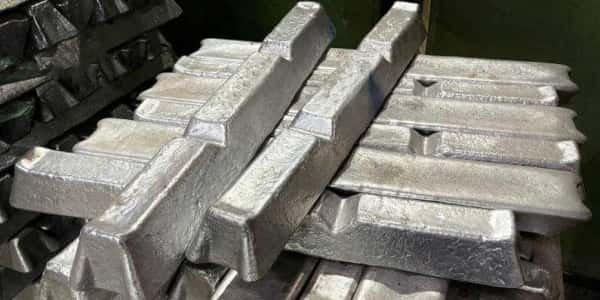

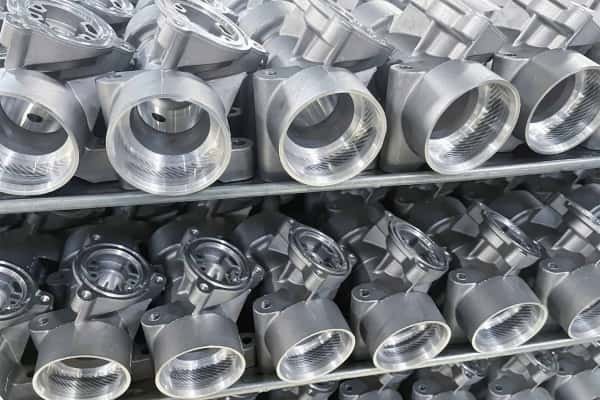

Aluminum Alloys

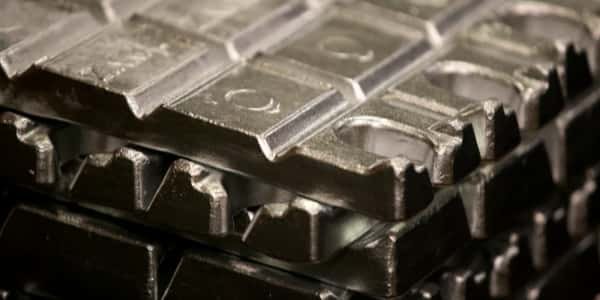

Zinc Alloys
Zinc alloys (low melting point ~420°C) excel at intricate, small parts. Zinc die cast and die cast zinc components (e.g., electronic connectors, hardware) use hot chamber machines for fast cycles. Zinc alloy die casting offers high dimensional accuracy and machinability, though parts often need coating for zinc die cast (e.g., chrome plating) to boost corrosion resistance.
Comparison
Aluminum is ideal for large, weight-sensitive parts; zinc suits small, detailed components. Aluminum die casting manufacturer operations often focus on automotive/electronics, while zinc die casting serves consumer goods.
Advantages and Limitations of Die Casting
Advantages
- Efficiency: High-volume production (hundreds of parts per hour) fits manufacturing die casting needs.
- Precision: Tight tolerances (±0.1 mm) reduce post-processing, critical for aluminum die casting and zinc alloy die casting.
- Complexity: Creates intricate shapes (thin walls, internal cavities) impossible with other methods.
Limitations
- High upfront cost: Dies (e.g., aluminum casting die) are expensive, making low-volume production uneconomical.
- Alloy restrictions: Limited to non-ferrous metals (no steel/iron).
- Porosity risk: Trapped gases can weaken parts, though process controls minimize this.

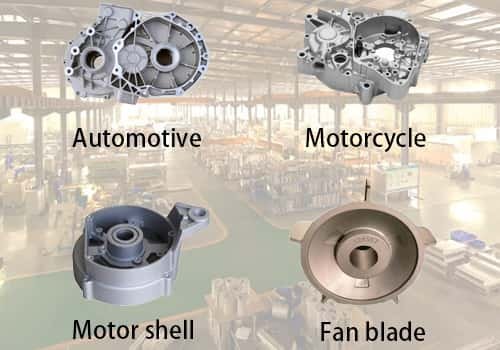

Application Industries
- Automotive: Die cast aluminum engine parts, zinc die cast door handles.
- Electronics: Aluminum heat sinks, zinc connectors (with coating for zinc die cast).
- Consumer Goods: Zinc hardware, aluminum appliance components.
- Industrial: Aluminum pump housings, zinc valve parts.
FAQs About Die Casting
What is die casting and how does it work?
Die casting is a manufacturing process in which molten metal is injected under high pressure into a reusable steel mold, called a die. This method is widely used for producing die cast aluminum and die cast zinc components with high precision, excellent surface quality, and minimal machining.
What are the advantages of aluminum die casting compared to zinc die casting?
Aluminum die casting provides lightweight, corrosion-resistant parts ideal for automotive and aerospace industries. Zinc die casting, on the other hand, offers excellent fluidity and strength, making it suitable for small, detailed parts such as connectors, locks, and gears.
What is an aluminum casting die and why is it important?
An aluminum casting die is the mold used in the die casting process to shape molten aluminum into precise parts. Its design and material quality directly affect the dimensional accuracy, surface finish, and durability of manufacturing die casting operations.
Do zinc die cast parts require additional coatings?
Yes. Although zinc die cast parts have good strength and detail, applying a coating for zinc die cast components enhances corrosion resistance, surface finish, and wear performance, especially in outdoor or industrial environments.
Which industries commonly use die casting?
Die casting is used across multiple industries:
Automotive: engine brackets, transmission housings (mostly die cast aluminum).
Electronics: device housings and heat sinks (zinc alloy die casting).
Aerospace: lightweight structural parts (aluminum die casting).
Consumer Goods: locks, handles, and furniture fittings (die cast zinc).
