Titanium vs Steel: The Ultimate Material Comparison

Steel has been the ultimate material choice for many projects. But it’s not without limitations for specific applications. Materials like titanium (Ti) are available to resolve such issues.

There are applications where titanium and steel can go toe to toe with each other. Knowing steel vs titanium in detail can let you make a rightful decision based on the project demands.

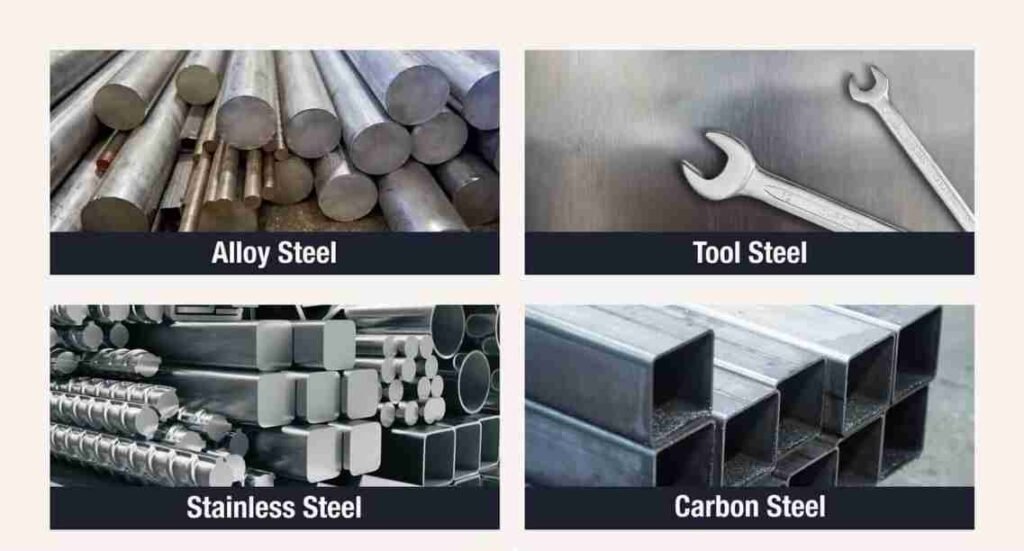

Overview of Steel

Steel possesses almost unmatched versatility. No wonder it’s one of the most widely adopted materials on the planet. The material features an alloy of iron (Fe) and carbon (C).

The integrated carbon content usually ranges from 0.2% to 2.1% by weight. Additional alloying elements include manganese (Mn), chromium (Cr), nickel (Ni), molybdenum (Mo), and vanadium (V).

Crucial Steel Properties

• Density = 7700 – 8050 kg/m³.
• Tensile Strength = 400 – 2000 MPa.
• Hardness = Varying with carbon%.
• Ductility = High in low-carbon steels.
• Magnetism = Most are magnetic.
• Thermal Conductivity = ~50 W/m·K.
• Corrosion Resistance = Low unless alloyed.

Notable Advantages of Steel

• High Strength-to-Cost Ratio: Steel possesses outstanding mechanical strength for its market price.
• Versatility: Manufacturers can roll, weld, machine, and heat-treat the material into countless forms.
• Recyclability: Over 60% of global steel gets recycled, making steel a leading sustainable material.
• Availability: Global production reached 1990 million tonnes in 2022 to ensure supply chain stability.
• Design Flexibility: Steel has widespread uses, from bridges and buildings to tools and appliances.

Potential Limitations of Steel

• Corrosion Susceptibility: Standard carbon steel rusts easily without protective coatings.
• Weight: Heavier than excessively lightweight alternatives like aluminum (Al) or composites.
• Thermal Expansion: Steel expands significantly under heat, affecting dimensional stability.
• Energy-Intensive Production: Standard steel-making requires tremendous amounts of energy.

Overview of Titanium (Ti)

The high-performance metal features some greatly desired features. You can start with strength-to-weight ratio, corrosion resistance, and biocompatibility.

Titanium is a transition metal with the atomic number 22. It’s a highly reactive material that naturally forms a protective oxide layer (TiO₂) to resist corrosion.

Crucial Titanium Properties

Density = ~4,506 kg/m³.

Tensile Strength = 300 – 1400 MPa.

Melting Point = 1670°C (3,038°F).

Magnetic Behavior = Non-magnetic.

Thermal Conductivity = ~21.9 W/m·K.

Corrosion Resistance = Excellent.

Noteworthy Advantages of Titanium

• High Strength-to-Weight Ratio: Usable titanium is as strong as steel for ~45% reduced weight.
• Corrosion Resistance: The formation of a stable oxide layer can resist rust, acids, and seawater.
• Biocompatibility: Ti has increasing uses in medical implants due to its non-reactive nature.
• Temperature Resilience: The metal can actively maintain mechanical integrity under high heat.
• Aesthetic Appeal: Luxury goods like watches, eyeglass frames, and bicycles use shiny surfacing.

Concerning Limitations of Titanium

• High Cost: Titanium is notably expensive than many materials due to extraction/processing complexity.
• Difficult Machinability: It requires specialized tools and techniques to address the poor castability.
• Lower Thermal Conductivity: Disadvantageous conductivity limits its use in heat dissipation applications.
• Limited Availability: Global production is still limited compared to most other standard materials.
• Energy Intensive: Ti production still relies heavily on the energy-intensive and expensive Kroll process.

Titanium vs Steel Compared

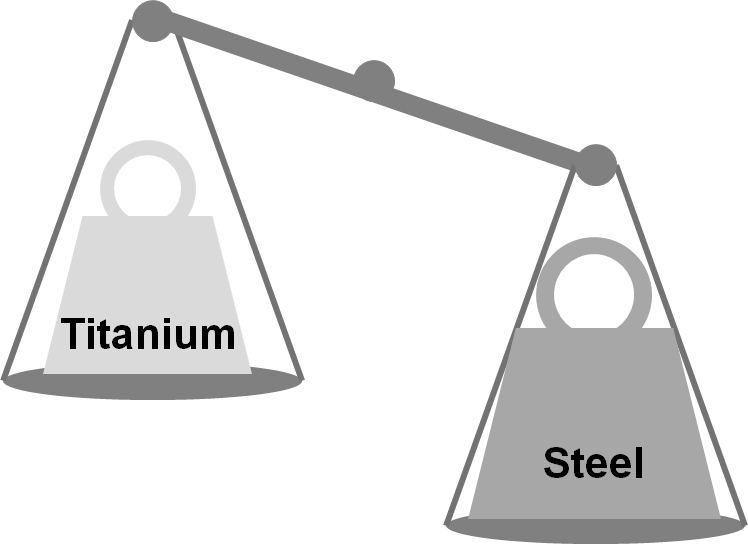

01. Weight

The density differs significantly between the two. Even the alloys and/or variants aren’t close. Density directly influences the material mass (more importantly, weight).

Standard Ti holds a density of 4.5 g/cm³. Meanwhile, steel ranges between 7.75 and 8.05 g/cm³. So, titanium measures about 45% less than steel for the same volume.

02. Strength

Both titanium alloys and steel variants are incredibly robust. Still, the strength profiles heavily differ from one another over alloying, application, and performance.

Steel alloys, depending on grade, can range from 250 MPa (mild steel) to 2000 MPa. You can go for ultra-high-strength tool steels for some critical applications.

03. Strength-to-Weight Ratio

It’s difficult to match steel’s immense mechanical strength while balancing other properties. However, titanium’s strength-to-weight ratio mostly exceeds that of steel.

For example, Ti-6Al-4V, the most common Ti alloy, can have tensile strength up to 1100 MPa. Add the 45% less weight, and Ti is the clear winner for lightweight applications.

04. Lifecycle + Recyclability

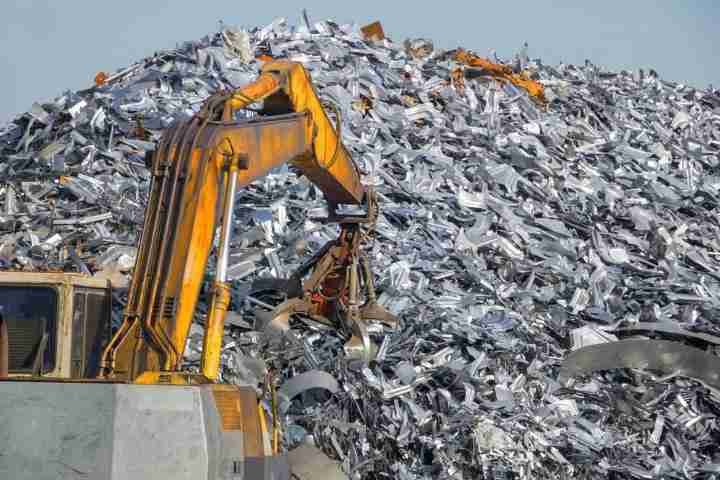

Steel is one of the most recycled materials. Over 85% of steel used in construction is recycled. Its magnetic properties make it easy to separate from waste streams.

Titanium, while recyclable, presents significant challenges. Its separation from alloys and contaminants is complex. Even the Kroll process of primary production is energy-intensive.

05. End-Product Durability

Ti surfaces barely rust even in seawater, acidic environments, and extreme temperatures. Durability enables lower maintenance, fewer replacements, and reduced environmental impact.

Steel, particularly carbon steel, needs protective coatings (galvanization and/or paint) to resist corrosion. Such coatings may contain volatile organic compounds (VOCs) or heavy metals.

06. Machinability

Titanium, as well as steel, is favored in CNC machining. But they exhibit notably different behavior when cutting. Steel, low carbon and alloys are highly machinable.

Predictable behavior, wide availability, and superior compatibility persist with high-speed tooling. Titanium, especially in some of the alloyed forms, presents notorious difficulties during machining.

07. Industry-Based Application

Common Titanium (Ti) applications across industries include –

• Aerospace: Structural components, landing gear, and engine parts.
• Defense: Armor plating, missile casings, and jet turbine blades.
• Automotive: Performance vehicles and motorsports (Formula 1).
• Chemical: Heat exchangers, desalination plants, and chemical reactors.
• Marine: Propeller shafts, hull fittings, and deep-sea exploration equipment.
• Consumer Goods: Eyewear, watches, smartphone casings, and bicycles.

Standard steel applications across industries include –

• Automotive: Chassis, body panels, engine blocks, and suspension systems.
• Construction: Bridges, skyscrapers, tunnels, and reinforced concrete.
• Marine: Heavy components (with chromium and molybdenum coatings).
• Consumer: cutlery, kitchen appliances, and budget-friendly wearables.
• Medical + Biomedical: Orthopedic implants, dental fixtures, and prosthetics.

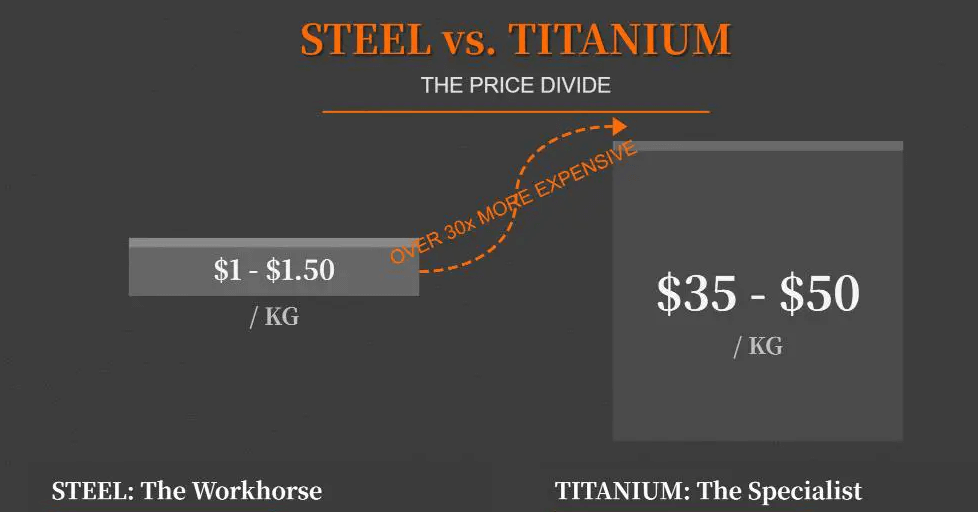

08. Cost

Ti alloys should cost around $35 – $50 per kg based on grade and purity. Stainless steel costs around $1 to $1.50 per kg. Carbon steel should feature a higher price tag.

So, Ti can cost 20 to 50 times more than steel on a raw material basis. Such distinction comes from the respective differences in complexity, consumption, and availability.

Titanium vs Steel: Head-to-Head Comparison

Property	Titanium	Steel
Density (g/cm³)	~4.51	~7.8 – 8.05
Tensile Strength (MPa)	300 – 1400	250 – 2000
Yield Strength (MPa)	~800 – 1100	~250 – 1800
Hardness (Brinell)	Lower (~70 – 100)	Higher (~120–200)
Fatigue Resistance	Excellent	Sufficient
Thermal Conductivity (W/m·K)	~21.9	~50
Melting Point	1670°C	1370°C – 1540°C
Machinability	Considerably Poor	Excellent from All Aspects
Weldability	Challenging	Generally good
Lifecycle Value	High	Moderate
Appearance	Matte silver-gray	Polished or dull gray
Cost (Raw Material)	~$35 – $50/kg	~$1 – $1.50/kg
Common Applications	Aerospace, medical implants, marine, and luxury goods	Construction, automotive, tools, infrastructure

Which One to Choose: Titanium or Steel?

01. Weight vs Strength

Titanium’s foremost advantage lies in its strength-to-weight ratio. It makes Ti ideal for aerospace, motorsports, and medical implants where every gram matters. Steel is more like the default choice for load-bearing structures where weight is less critical.

02. Cost Considerations

Titanium is significantly more expensive compared to stainless steel. Such differences derive from Ti’s energy-intensive Kroll process, limited global supply, and specialized machining requirements.

Steel holds the upper hand with colossal-scale global production and mature supply chains. It makes steel far more economical for large projects like bridges, buildings, and automotive manufacturing.

03. Machinability + Fabrication

Steel is easier to machine, weld, and form. It responds well to heat treatment. Also, the material seems compatible with standard tooling. Ti, on the other hand, is notoriously difficult to machine. It requires carbide tools, low cutting speeds, and high-pressure coolant systems.

04. Application-Specific Priorities

Ti wins for weight savings and fatigue resistance in aerospace. Steel dominates the automotive industry due to affordability and scalability.

Ti is used in high-performance parts like exhaust systems and suspension arms. Steel remains unrivaled in structural applications.

05. Lifecycle Value vs Upfront Cost

Titanium costs more initially, but its performance can deliver better ROI in specialized applications. Steel offers cost-effective strength and design flexibility. That’s why it’s the default choice for most industries.

Applications solely focusing on strength should go for steel without any second thought. In contrast, you should look into titanium for applications related to reduced weight as well as superb fatigue resistance.

Frequently Asked Questions (FAQs)

1. Can Ti replace steel in high-impact industrial tools?

No (general case). Tool steels like AISI D2 or M2 feature superior hardness and wear resistance. That’s why they make it to high-impact tools like chisels, dies, and drill bits.

• Is titanium suitable for cryogenic applications?

Yes. Titanium products perform well at cryogenic temperatures. However, certain stainless steels also perform reliably in cryogenic conditions.

• How do titanium and steel behave under cyclic thermal loading?

Ti exhibits excellent thermal fatigue resistance due to its high melting point. Steel may suffer from thermal fatigue cracks over repeated heating and cooling cycles.

• Which metal is better for additive manufacturing (3D printing)?

Titanium, especially Ti-6Al-4V, is widely used in metal additive manufacturing. Steel is also printable, but Ti’s lower density makes it a standout in powder-bed fusion and direct energy deposition.

• Which metal offers better vibration-damping properties?

Steel offers better vibration damping by default over higher density and stiffness. Ti’s lower modulus and lighter mass result in less inherent damping.

Conclusion

Proper material selection is the first major step in successful project implementation. Everything simply goes haywire with the wrong material. Ti vs steel brings different strengths to the table for comparison. You better make a list based on project specs and match them with each material’s properties.
